IXAR Aqua Jazz Hull Cleaner
DEPTH RATING: 30 METERS
Click thumbnails to switch image

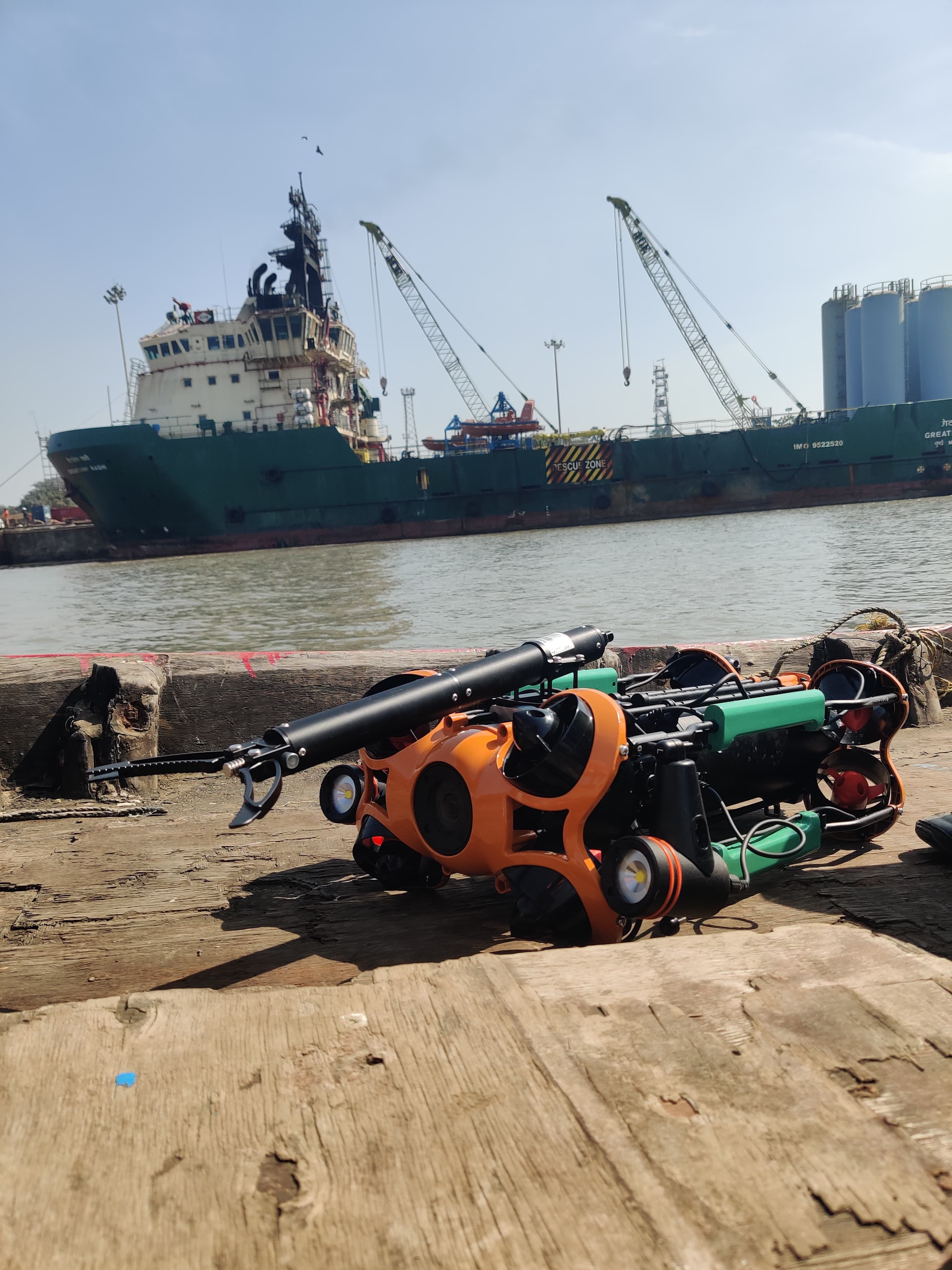

Product & Field Deployment Photos (Click to View)
INDUSTRIAL ROBOTIC PLATFORM

IXAR Aqua Jazz Hull Cleaner

Eco-friendly underwater vessel cleaning robot

The IXAR Aqua Jazz Hull Cleaner (or ship hull cleaner) is a heavy-duty, hybrid magnetic-suction robot built to remove biofouling from vessel hulls without damaging the underlying anti-fouling paint. Operating while the vessel is at anchor, it uses high-speed cavitation nozzles or specialized soft brushes to dislodge barnacles and slime, which are vacuumed away via an optional filtration unit. Regular cleaning using the Aqua Jazz restores the hull's hydrodynamic efficiency, reduces fuel burn by up to 10-15%, and prevents the spread of invasive marine species, ensuring compliance with global environmental standards.

Weight25 kg
Thrusters4 Units
Depth Rating30m
DOF2 Degrees of Freedom (Drive/Turn)

Core Engineering Features

Cavitation cleaning heads that do not scrape the hull paint
High suction force generator maintaining contact during operations
Live optical monitoring for before-and-after validation
Works underwater while the ship is docked or at anchor
High-efficiency cleaning rate up to 150 square meters per hour
TECHNICAL SPECIFICATIONS

IXAR Aqua Jazz Hull Cleaner Engineering Datasheet

ParameterSpecification Details
Dimensions720 × 580 × 320 mm
Weight25.0 kg
Adhesion MechanismCombined magnetic wheels and hydraulic thruster suction
Cleaning Rate100–150 m²/hr (based on biofouling density)
Operating DepthSplash zone down to 30 meters
Visual SystemDual low-light cameras with high-intensity floodlights
Cleaning MethodCavitation water-jet jets / rotary soft brushes
Surface Command ConsoleDual joystick station with telemetry overlay screen
