INDUSTRIAL ROBOTIC PLATFORM
IXAR Magnetic Crawler
High-precision vertical steel asset scanner
The IXAR Magnetic Crawler is a specialized robotic platform designed to scale vertical steel structures. Using high-attraction rare-earth magnetic wheels, it adheres securely to wet or dry steel plates. It is equipped with Ultrasonic Thickness (UT) testing sensors to scan for internal corrosion and thinning in real time, making it invaluable for oil storage tanks, pressure vessels, and dry docks. By replacing scaffolding and rope access, the crawler reduces inspection costs and completely eliminates fall hazards.
Weight12 kg
Thrusters0 Units
Depth Rating50m
DOF2 Degrees of Freedom (Drive/Turn)
Core Engineering Features
Permanent rare-earth magnetic wheels with high traction force
Real-time Ultrasonic Thickness (UT) logging on steel plates
High-resolution visual inspection camera with ring light
Failsafe mechanical safety tether attachment points
Submersible capability for splash zone or shallow water works
TECHNICAL SPECIFICATIONS
IXAR Magnetic Crawler Engineering Datasheet
| Parameter | Specification Details |
|---|---|
| Dimensions | 420 × 380 × 180 mm |
| Weight | 12.0 kg |
| Magnetic Adhesion Force | 120 kg (safety factor >10×) |
| Operating Environment | Dry steel, splash zones, and shallow water up to 5m depth |
| Payload Capacity | Up to 8.0 kg vertical load |
| NDT Capabilities | Ultrasonic Thickness (UT), Eddy Current Testing (ECT) |
| Steering | Skid-steer differential drive |
| Cable Length | 50m umbilical (expandable to 100m) |

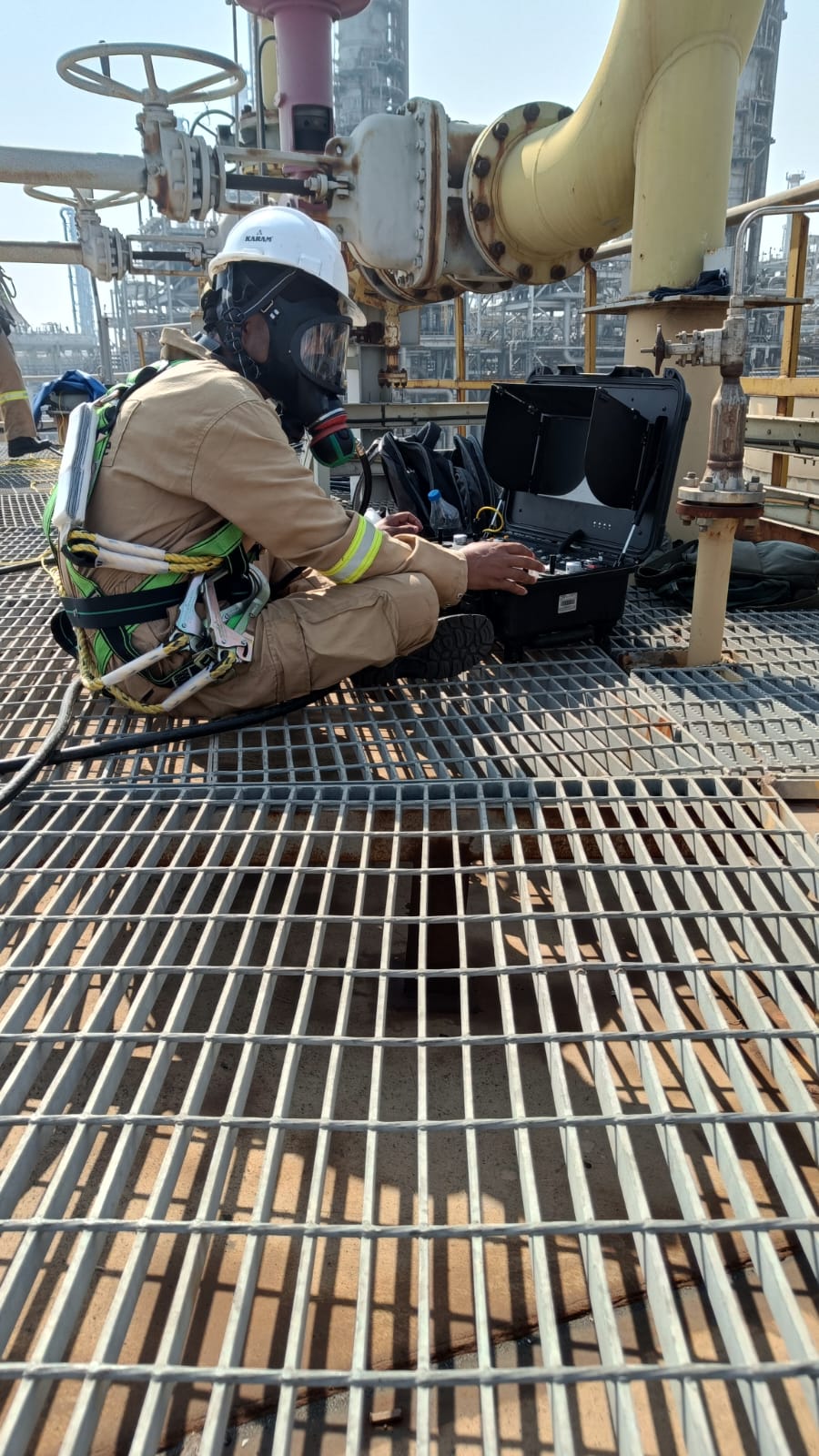

FIELD DEPLOYMENTS
